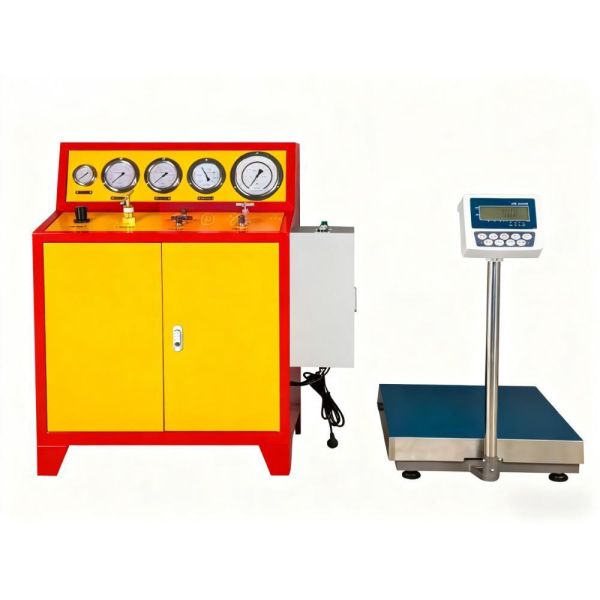

FM200 Pneumatic CO2 Filling Machine

Brand Name : CDI

Model Number : FM200

Certification : ISO 9001, CE

Place of Origin : Chongqing

MOQ : 1

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Delivery Time : 15-20 days

Product Type : Pressure Calibrators

Accuracy : 0.01

Customized Support : OEM, ODM, OBM

Power & Voltage : Power 220v 50Hz, Voltage 220V

Protection Class : IP55

Applicable Medium (Fuel) : FM200, HFC-227ea, Compressed Air

Application : Charging FM200/ HFC-227ea Cylinders

Structure Type : Piston Pump

Contact Now

HFC-227ea/FM200 Pneumatic Filling Machine

1. Product Overview

The GBS-RP04-06-ES filling system (including injection pump, precision pressure gauge, pressure reducing valve, high-pressure solenoid valve, electrical control part, etc.) and non-standard parts (weighing machine, vacuum pump).

2. Product Features

The filling equipment uses compressed air as the power source to drive the filling and conveying of HFC-227ea/FM200. When the transmission weight reaches a certain value, the sensor signal is transmitted to the gas solenoid valve, the gas supply is closed, and the pump stops working.

Then connect the nitrogen source, open the high-pressure nitrogen valve to inject nitrogen; when the precision pressure gauge shows the required nitrogen pressure, close the nitrogen valve; filling is completed. It has the characteristics of small volume, light weight, simple operation and reliable performance. It is especially suitable for the filling of heptafluoropropane in the fire protection industry.

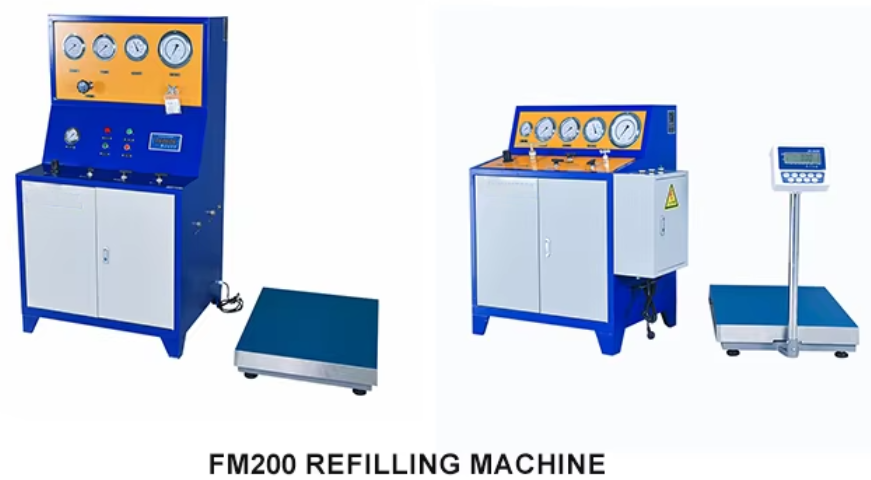

FM200 Pneumatic CO2 Filling Machine

3. Main Technical Data

Item	Parameter
Product Name	FM200 Pneumatic Inflator
Specification	GBS-RP04-06-ES
Type	Pressure Calibrator
Nitrogen Output Pressure	0-100 Bar (Adjustable)
Nitrogen Source Pressure	<15Mpa
Filling Medium	FM200, Nitrogen
Filling Weight	0-500 Kg
Accuracy	0.01
Customizable	OEM, ODM, OBM
Power	220v 50Hz
Protection Class	IP55
Voltage	220 V
Warranty Period	12 Months
Fuel	FM200, HFC-227ea, Compressed Air
Certificates	ISO 9001, CE
Filler	Wooden Packaging
Power Supply	Hydraulic
Application	Inflating FM200/ HFC-227ea Cylinders
Structure	Piston Pump
